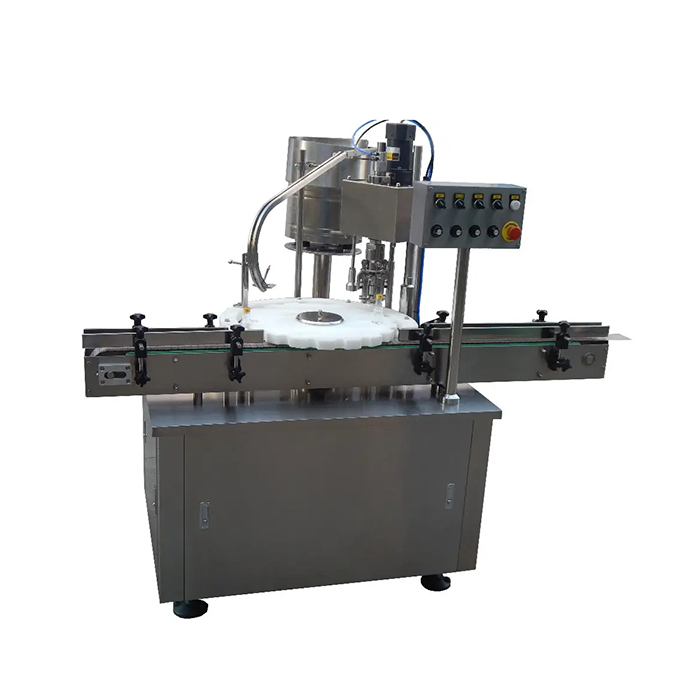

Hoëspoed-masjienbottel roterende afdekmasjien

Hoëspoed-masjienbottel roterende afdekmasjien

inleiding

---

This automatic capping machine is suitable for round cap, spray/pump tightening, can work with existing filling line, Electrical control movement, strong stability; with positioning devices, standard Capping, easy to operate; wide capping range suitable for different shapes and sizes; resolved the difficult problem on nozzle cap, pump cap, spray pumps, spray gun in hand button capping; lock lid with adjustable speed can be adjusted according to different cap tightness.Widely used in detergent, shampoo, shower gel, hand cleaning gel, laundry detergent and many other daily chemical products

Kenmerkende

---

1, PLC controlled , integrated cap capping ( automatic cap sorting/cap feeding can be option)

2, outomatiese inlaatdop en bottel posisie-instelling en oriëntasie, verstelbare wringkragbeheer.

3, sagte manipulasie, geen krap en beserings aan doppe en houers nie

4, maklike omskakeling, een lyn wat verskillende produkte kan bied

5, word maklik met 'n vulmasjien en etiketmasjien gekoppel

6, Modulestruktuur, manipuleer op die aanraakskerm, maklik onderhoud

Spesifikasie

---

naam	Hoëspoed-masjienbottel roterende afdekmasjien
model	WTPC-200
aansoek	Pompdop, spuitdop, naalddop en normale ronde dop
produksie	1800-2400B / Uur
krag	220V 50Hz 0,7KW
Dopdiameter	20-40mm
Bottelhoogte	80-350mm
Draaiende krag	5-20N.m
gewig	300kg
dimensie	2000 * 1100 * 1550mm

Vinnige besonderhede

---

Tipe: Afdekmasjien
Toestand: nuut
Toepassing: Kleding, drank, chemiese, kommoditeit, voedsel, masjinerie en hardeware, medies, tekstiele, pompdop, spuitdop, naalddop en normale ronde dop
Aangedrewe tipe: elektries
Outomatiese graad: outomaties
Spanning: 220V / 110V
Krag: 0,75kw, 220V / 110V
Verpakkingstipe: bottels
Verpakkingsmateriaal: glas, plastiek
Plek van herkoms: Sjanghai, China (vasteland)
Handelsnaam: NPACK
Afmeting (L * B * H): 2000 * 1100 * 1550mm
Gewig: 300 kg, 300 kg
Sertifisering: ISO9001
Na-verkope diens gelewer: Ingenieurs beskikbaar vir masjinerie in die buiteland
Naam: Hoëspoed-melkbottel-roterende afdekmasjien
Styl: Hoëspoed-melkbottel-draaimasjien
funksie:
Hoëspoed-masjienbottel roterende afdekmasjien
Dopdiameter: 20-40mm
Bottelhoogte: 80-350mm
Draai krag: 5-20N.m
Afmeting: 2000 * 1100 * 1550mm

---

• Automatic press is set on the plug, gland, out of the bottle in an ideal automation machinery, can easily with other equipment linkage, realize full automation .
• Simple operation,capping automatically PLC control,no bottle no capping, with high accuracy.
• Magnetic torque screw capping,never in-gage,cap unscrewing torque adjustable.It does not hurt bottles and caps.
• Automatic capping machine is mainly suitable for pharmaceutical, medical, food, chemical and other industries filling after tamponade, is a kind of, stability, strong commonality of equipment.
