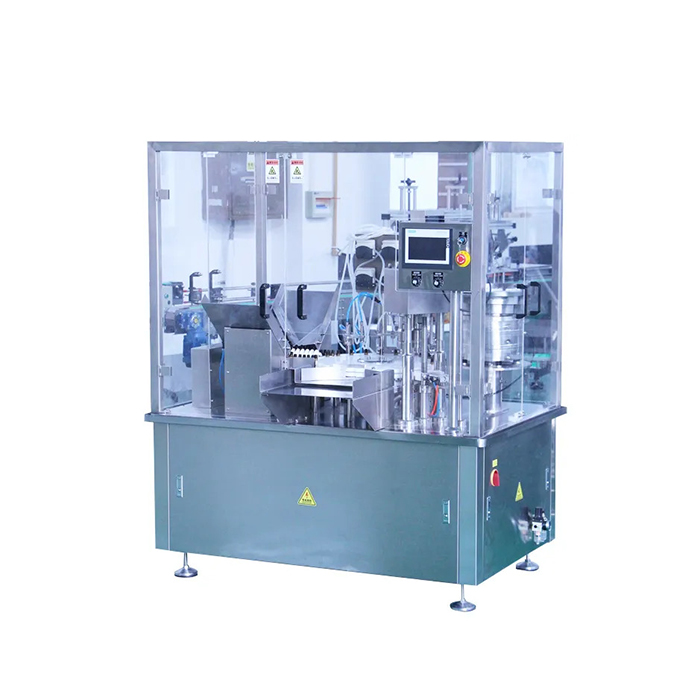

2-in-1 outomatiese bottelmasjien vir die vloeistof

2-in-1 outomatiese bottelvul- en afdakmasjien vir vloeistof

1. The material which contact directly with the oil is the SUS304 (GMP), made in China.

2. The 3-in-1 is mainly used to food, daily,cosmetic Paste filling and capping.

3. Die vulmasjien neem die wêreldbekende handelsmerk-elektriese komponente aan, 'n lae druksyfer, betroubare werkverrigting, lang lewensduur.

4. Eenvoudige vulvolume en regulering van die snelheid deur die aanraakskerm, 'n pragtige voorkoms.

5. Daar is die funksie van geen bottel nie vul, vloeistof vlak outomatiese beheer laai. Het nie nodig om onderdele te verander nie; verskillende spesifikasies van die bottelvorm kan baie vinnig verander word, want dit hoef nie onderdele te verander nie.

6. Vulkop is toegerus met 'n spesiale uitblaasvoorkomer, wat geen draad- en druppelverskynsel vul nie.

Die werkproses:

---

Outomatiese vullyn het servostelsel. Sit kunsmatige leë bottels kunsmatig in die band, voer die vullyn outomaties in volgens die bevel van die PLS-beheerstelsel, en voltooi dan die materiaalvulling.

opset:

---

1. Masjienmateriaal: SUS304

2. Kontakmateriaal: SUS316

3. Rusonderdele Materiaal: starre alumina

4. Vul servomotor: Taiwan TECO

5. PLC-beheerstelsel: Siemens

6. Raakskerm: Siemens

7. Foto-elektriese sensorkomponente: Korea AUTONICS

8. Lae-spanning elektriese toestelle: Schneider

Tegniese parameter

---

Vul volume	100-200ml (kan aangepas word vir u maat)	Masjienkrag	1.5 kW
Vulspoed	40-60B / M	Voedingspanning	AC 220 / 380V 50 / 60Hz
Vul presisie	+-0.5%	Masjiengewig	360KGS
Lugdruk	0.4-0.6MPa	Masjiengrootte	3500 * 1580 * 2190mm

Vinnige besonderhede

---

Tipe: vulmasjien
Toestand: nuut
Toepassing: Drank, chemies, kommoditeit, voedsel, medies
Verpakkingstipe: bottels, blikkies, kartonne, saak, opstaande sak
Verpakkingsmateriaal: glas, metaal, plastiek
Outomatiese graad: outomaties
Aangedrewe tipe: Elektries en lug
Spanning: 220V / 380V
Krag: 1.6KW
Plek van herkoms: Sjanghai, China (vasteland)
Handelsnaam: NPACK
Dimensie (L * W * H): 2200X2100X2200MM
Gewig: 450kg
Sertifisering: CE ISO
Na-verkope diens gelewer: Ingenieurs beskikbaar vir masjinerie in die buiteland
Produknaam: 2-in-1 outomatiese bottelmasjien vir vloeistof
Materiaal: SUS304 / 316
Funksie: vloeibare vulstof
Gebruik: Drankverpakking
Vulmateriaal: vloeiende vloeistof
Botteltipe: ronde bottel
Kapasiteit: 40-150B / M
Waarborg: 12 maande

---

A 2-in-1 automatic bottle filling and capping machine for liquid is a piece of equipment used for filling bottles with liquid and then capping them. The filling and capping process is done automatically, which saves time and reduces the need for labor. This machine is used in various industries, including food and beverage, pharmaceuticals, and cosmetics.

The filling part of the machine works by using a volumetric filling method to fill the bottles with the liquid product. The volumetric filling method ensures that the bottles are filled with the correct amount of product, which is important in industries where the correct dosage is crucial. The machine can fill a range of bottle sizes and types, making it versatile for use in different industries.

The capping part of the machine uses a mechanical method to place the caps on the filled bottles. The caps can be of different sizes and shapes depending on the type of product being packaged. This machine ensures that the caps are securely placed on the bottles to prevent any leaks or spills.

The 2-in-1 automatic bottle filling and capping machine is an essential piece of equipment for any manufacturing process that involves liquid products. It can increase productivity, reduce labor costs, and ensure that the products are packaged consistently and correctly. The machine is easy to operate and can be customized to meet the specific needs of the business, making it a valuable investment.
