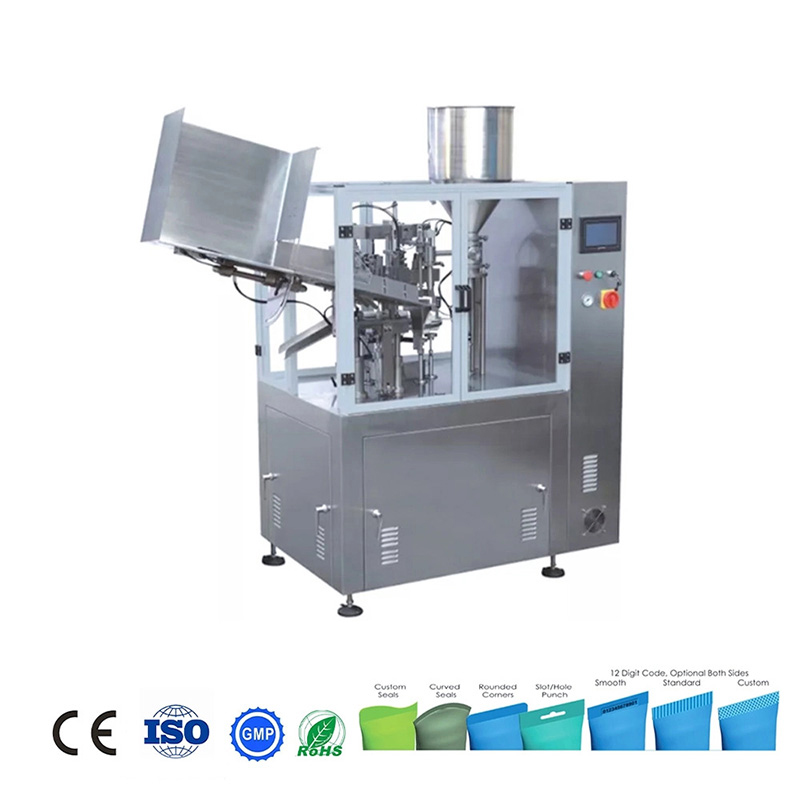

Roombuisvulmasjienvervaardigers vervaardig

Produk Beskrywing:

---

Hierdie masjien is 'n hoë tegniese toerusting wat suksesvol ontwikkel en ontwerp is deur 'n gevorderde oorsese tegnologie in te voer en GMP-vereistes te integreer, met funksies van billike struktuur, volle funksie, maklike werking, akkurate vulling, stabiele loop sowel as lae geraas. Dit neem met PLC-kontroleerder, wat outomaties werk van vloeistof- of hoë snelheidsmateriaal-vulling tot die nommer van die groepnommer (sluit vervaardigingsdatum in), dit is 'n ideale toerusting vir ALU-buis, plastiekbuis en meervoudige buisvulling en verseëling in skoonheidsmiddels, apteek, voedsel, kleefmiddels, ens. nywerhede, voldoen aan die standaard van GMP.

Kenmerke:

---

1. Hoëgraad operasieskerm met LCD-skerm PLC en knoppies, maklike werking en meer menslikmaking Deur stapsnelheid spoedverstelling, parameter-stel, out-sit-telling, druk-indeks en foutskerm.
2. Buisvoorsiening, foto-elektronregister, inertgasvulling (opsioneel), materiaalvulling en verseëling outomaties uitvoer, batch nommer druk, finale produkte lewer.
3. Hoë presisie-foto-elektronregister het die chromatiese afwykingsomvang verminder.
4. Aanpassingsonderdele in posisie, digitaal vertoon, gemaklik en akkuraat verstelbaar (geskik vir verskeidenheid produkte).
5. Meganiese, foto-elektroniese, elektriese, pneumatiese integrerende beheer, bereik geen buis nie vulfunksie; Wag as die buisfoutposisie of die druk te laag is, outomatiese stopmasjien as die beskermende deur oopgemaak word.

model	GF-400 A	GF-400 B
Buismateriaal	Metaalbuis, ALU-buis	Plastiekbuis, saamgestelde buis
Buisdeursnee	10-42 mm	10-60 mm
Buislengte	50-250 (aanpas)	50-250 (aanpas)
Vul volume	5-500ml / tak (verstelbaar)	5-800ml / tak (verstelbaar)
Vul akkuraatheid	≤ ± 1%	≤ ± 1%
spoed	3-10 r / min	2,5-7 r / min
Produkkapasiteit	30-60 St / min	30-60 St / min
Lug toevoer	0.55-0.65mpa	0.55-0.65mpa
Motor krag	2kw (380V / 220V 50Hz)	2kw (380V / 220V 50Hz)
Hitte seëlkrag	3kW	3kW
Algehele dimensie	2620 × 1020 × 1980 mm	2620 × 1020 × 1980 mm
Masjiengewig	1100 kg	1100 kg

Basiese inligting

---

Toepassing: plak
Spesies vorm: bottelvorming
Aangedrewe tipe: elektries
Verpakking: sagte buis
Motorkrag: 2kw (380V / 220V 50Hz)
Algemene afmeting: 2620 × 1020 × 1980mm
Trademark: VKPAK
Oorsprong: Sjanghai, China
Outomatiese graad: outomaties
Tipe: vul- en seëlmasjien
Vormende funksie: vul
Materiaal tipe: plak
Produkvermoë: 30-60 PC / Min
Hitte-verseëlingskrag: 3kw
Masjiengewig: 1100 kg
Spesifikasie: CE

---

A cream tube filling packing machine is a type of packaging machinery designed for filling and packaging various types of creams, gels, pastes, and other similar products into tubes. This type of machine typically consists of several components, including a tube feeder, filling unit, sealing unit, and cutting unit. The overall production process is automated, which ensures the accuracy and consistency of the fill, as well as the speed of production.

The specific features and specifications of a cream tube filling packing machine may vary depending on the manufacturer and the intended application, but some common features include:

High precision: The filling system is designed to be accurate, with the ability to fill the exact amount of product specified, with minimal waste.

Versatility: The machine can be used for filling and packaging a wide range of products, including creams, gels, pastes, and other similar products.

Hygiene: The machine is designed to meet hygiene standards, with components made from food-grade stainless steel and other non-corrosive materials. The filling system is also designed to prevent contamination, ensuring the safety and quality of the product.

Easy to operate: The machine is typically user-friendly, with intuitive controls and easy to follow instructions. The system is also designed to be easy to maintain, with minimal downtime required for cleaning and servicing.

High production rates: A cream tube filling packing machine is designed to work at high production rates, with the capability of filling and packaging hundreds or even thousands of tubes per hour.

Overall, a cream tube filling packing machine is an efficient and reliable solution for filling and packaging various types of creams and gels into tubes. It is a popular choice for manufacturers who need to package products for retail or commercial use, with the ability to meet high standards of accuracy, consistency, and hygiene.
