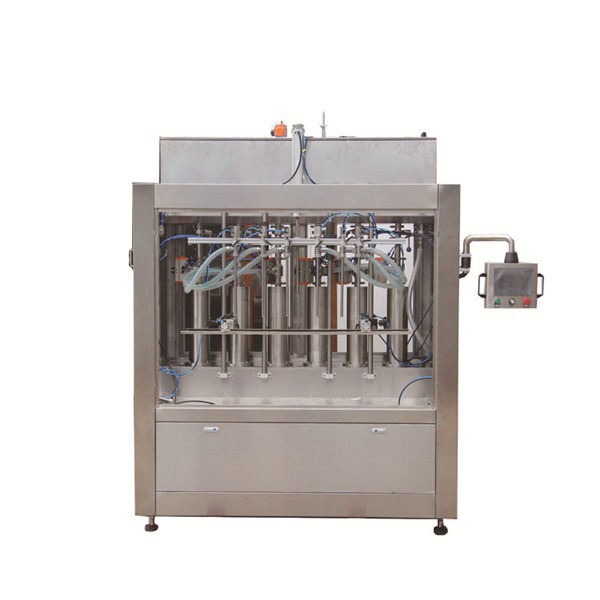

Skottelgoedwassende vloeibare vulmasjien

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

spesifikasies

skottelgoedwasmiddel
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

beskrywing

CE van die EU
ISO9001
Voldoen aan die vereistes van GMP
longlife of service, low mainteinance rate

Hooffunksie

Die masjien is 'n gevorderde masjien met 'n hoë presisie wat die botteltelling-, vul- en afdakproses outomaties kan voltooi.

Kenmerke

1. Kompak gestruktureerd, mooi, maklik om te bestuur en hoogs outomaties.

2. kontak met materiaal is vervaardig van vlekvrye staal, maklik om skoon te maak.

3. Die vulvolume word met filmkleppe beheer om akkuraatheid te verseker.

4. Hoë-snelheid en baie akkurate vulkleppe verseker geen lekkasie.

5. Dit is toegerus met 'n effektiewe dopvoerstelsel.

Taalopsie

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Belangrike kenmerke:

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Kan baie parameters memoriseer, nuttig vir verskillende spesifikasies wat verander is, al die dosisse vir die vul kan met die aanraakskerm aangepas word.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Vernaamste tegniese parameter

item	naam	Tegniese parameter
01	Masjienafmeting (L * W * H)	2200 * 1400mm * 2800mm
02	Masjiengewig	Ongeveer 1400 kg
03	Houder se binnediameter oop	≥φ35mm
04	Geskikte houer	1Liter .2Liter
05	Houerhoogte	80-350mm
06	Kragtoevoer	AC 380V; 50 HZ
07	krag	5kW
08	Vul akkuraatheid	≤ ± 1%
09	Lugbron	0,6Mpa stabiele en skoon saamgeperste lug
11	Aantal vulspuitpunte	13
12	Hoogte van die vervoerband	900mm ± 50mm
13	kapasiteit	≤3200 flesse / uur (neem water as toets)
14	Bottel in voerrigting	Van links na regs

Vinnige besonderhede

Tipe: vulmasjien
Toestand: nuut
Aansoek: Chemiese
Verpakkingstipe: bottels
Verpakkingsmateriaal: hout
Outomatiese graad: outomaties
Aangedrewe tipe: pneumaties
Spanning: 220v
Krag: 3KW
Plek van herkoms: Sjanghai. China (vasteland)
Handelsnaam: VKPAK
Afmeting (L * B * H): 2200mm * 1400mm * 2800mm
Gewig: 1400
Sertifisering: CE
Na-verkope diens gelewer: Ingenieurs beskikbaar vir masjinerie in die buiteland
materiaal: SS304
PLC: Panasonic
Raakskerm: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
